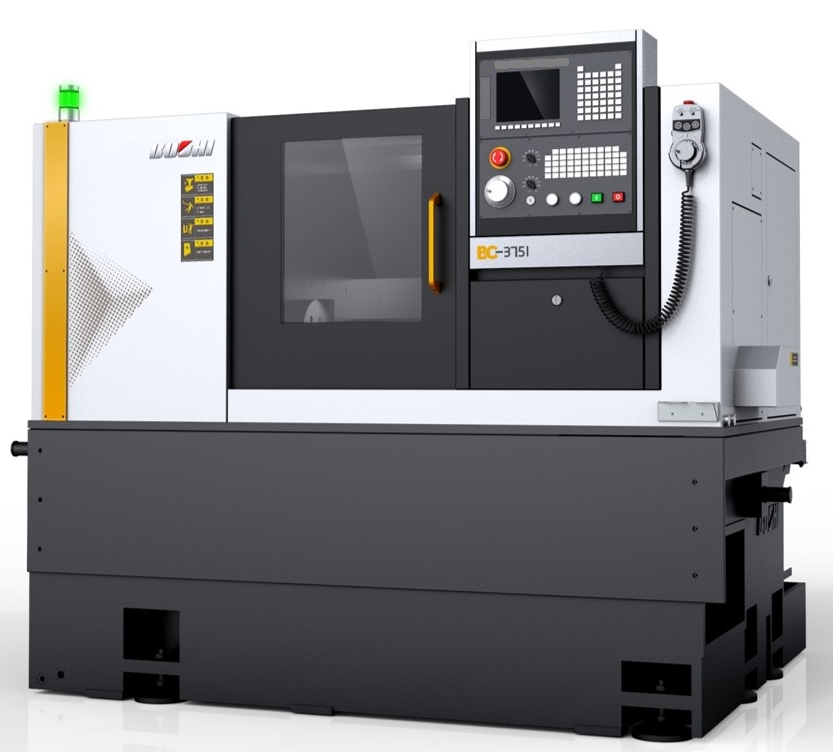

BC37 series CNC lathe adopts integral flat bed, 30° oblique saddle structure, compact structure, large rotary diameter, small occupation area; Large knife plate, small tool interference. Equipped with domestic NUMERICAL control system, can process internal and external cylinder, cone, arc surface; All kinds of thread and hole drilling, expansion, reaming and other processing. Suitable for automobile, industry parts processing.
|
Description |
Unit |
BC37 series |
||||||
|
BC3731 |
BC3751 |
BC3751L |
||||||
|
Capacity |
Max swing over bed |
mm |
Φ550 |
|||||
|
Max.workpiece length |
mm |
310 |
510 |
|||||
|
Max. turning dia |
mm |
Φ370 |
||||||
|
Max swing over skateboard |
mm |
Φ330 |
||||||
|
diameter of Hydraulic chuck |
in |
8 |
||||||
|
Spindle |
Spindle nose |
GB5900.1 |
A2-6 |
|||||
|
Spindle hole taper |
|
1:20 |
||||||
|
Spindle thru-hole |
mm |
Φ66 |
||||||
|
Spindle bearing diameter (front / behind) |
mm |
Φ100/Φ90 |
||||||
|
Spindle speed |
r/min |
50～4500 |
||||||
|
Moto |
kW |
11/15 |
||||||
|
Tailstock |
Max quill travel |
mm |
150 |
Otions |
350 |
|||
|
Taper hole (Morse) |
MT No. |
4# |
5# |
|||||
|
Apron |
Swivel angle |
DEG |
30° |
|||||
|
Rapid traverse X/Z |
mm |
210/350 |
210/550 |
|||||
|
Rapid traverse speed X/Z |
m/min |
30/30 |
42/60 |
|||||
|
Servo motor torque X/Z |
N.m |
10/15 |
/ |
|||||
|
Dia of ball screw X/Z |
mm |
Φ32 |
/ |
|||||
|
Tool |
Diameter of ball screw |
|
8 |
|||||
|
Tool section (Turning/boring) |
mm |
25×25/Φ40 |
||||||
|
Others |
Power |
kVA |
23 |
|||||
|
Dimension (L×W×H) |
mm |
1929×2754×1794 |
2254×2754×1794 |
2254×3093×1794 |
||||
|
Total weight |
kg |
4100 |
4400 |
|||||
